Splitter/Booster SP14S-AC

The SP14S-AC is a DMX512 distribution and amplifying unit in a standard DIN rail enclosure with 1 input, thru and 4 outputs. All inputs and outputs are fully opto isolated against each other. The basic version needs a supply voltage range from 100 – 240V ~/=.


With the latest issue and by popular demand we fitted all connection points with big screw terminal blocks for wire diameters up to 2.5²mm. The signal / power LED is on the front panel now.

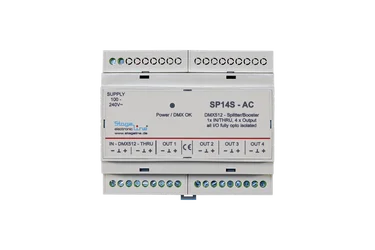

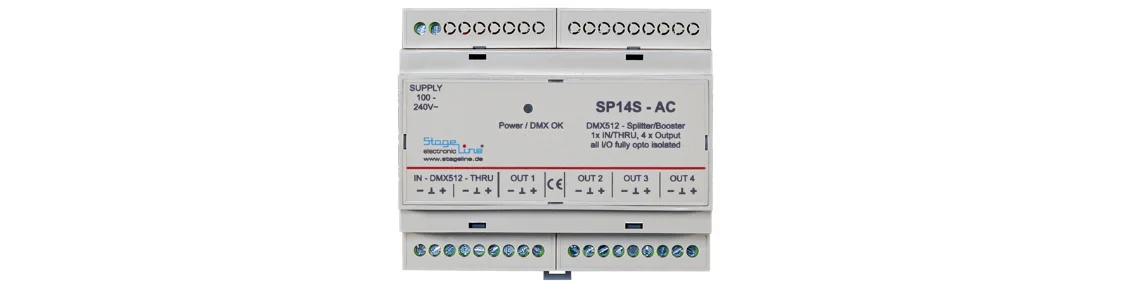

SP14S-AC

Summary of characteristics:

  • 1x DMX512 input
  • 4x isolated and boosted DMX512 outputs
  • DIN-Rail Mount
  • All connection points using elevator screw Terminal up to 2.5²mm
  • supply voltage range 100 – 240V~/=
  • dimensions (LxWxH) 106,25 x 90,2 x 57,5mm
  • weight 222g

Operation:

The incoming DMX512 signal will be checked for valid DM512 data by a µController after passing an electrical isolation barrier with extended ESD protection.



The valid DMX512 signal is routed to all outputs passing again electrical isolation barriers. Each output is now capable of 32 new devices.
